Dental Sintering Furnace

Introduction

The GERNIN dental sintering furnace is engineered for both rapid and conventional sintering of zirconia restorations.
Perfectly matched with GERNIN zirconia materials, it forms an integral part of the fully validated digital workflow.

This next-generation furnace offers intuitive, user-friendly operation with adjustable firing programs, high-purity silicon heating elements, and options for remote monitoring and management.

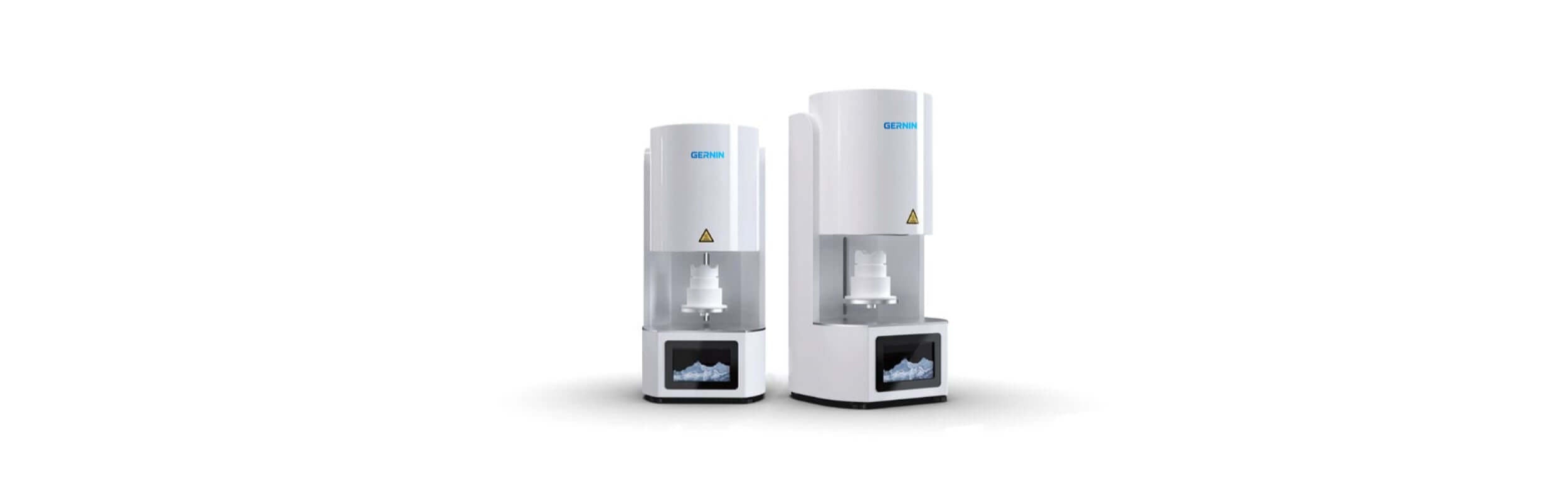

Available in two sizes, its smart design makes it equally suitable for use in dental laboratories and clinical environments.

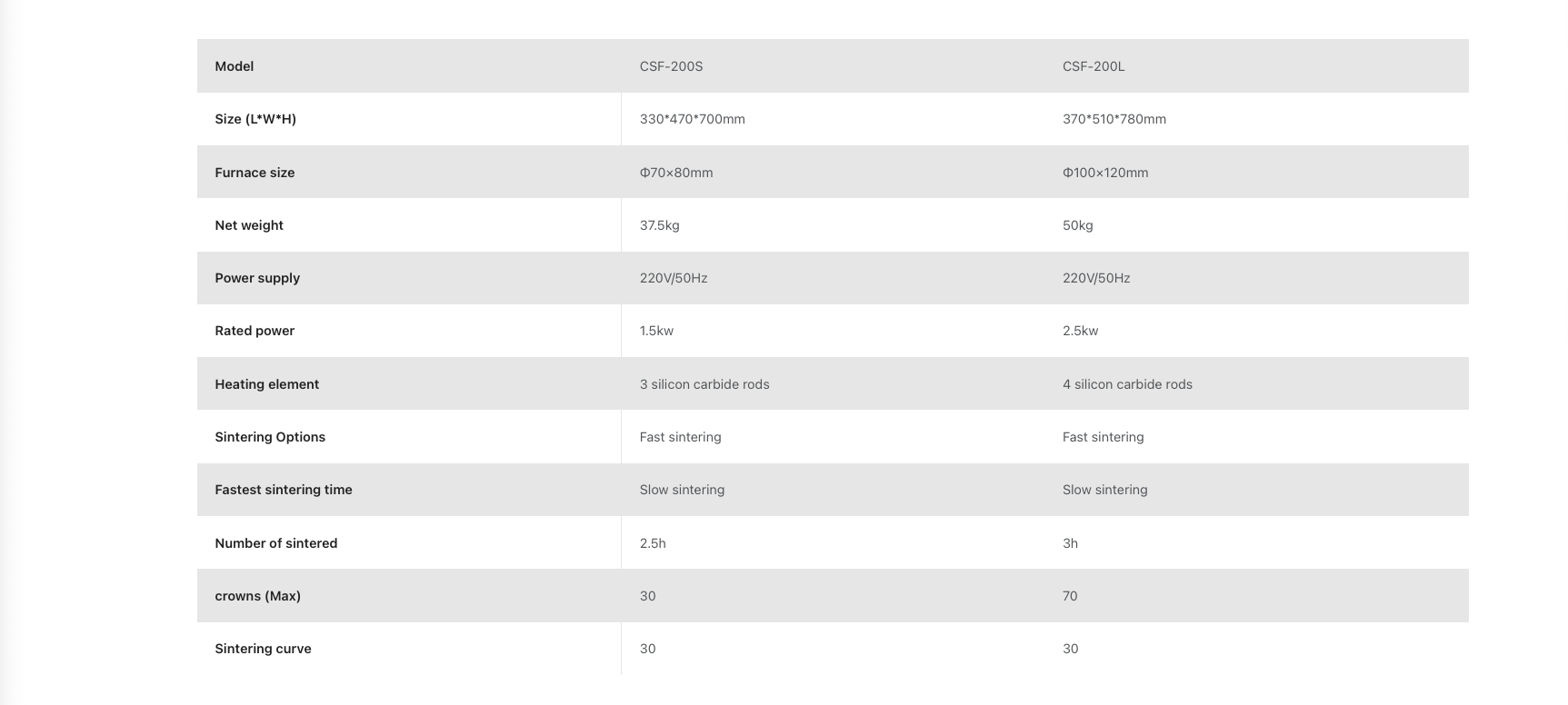

Parameter

HIGH PURITY SILICON CARBIDE ELEMENTS

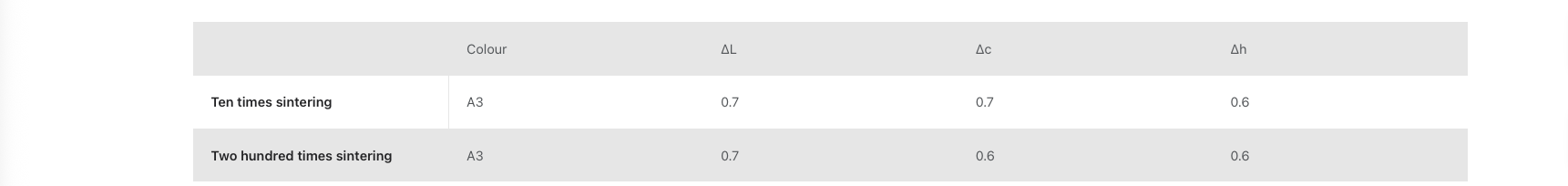

Colour stability time after time with no discolouration to zirconia materials

ZIRCONIA RAPID SINTERING FURNACE

Fast sintering rate, Large number of sintering, Good sintering effect, safety

1. Fast sintering rate

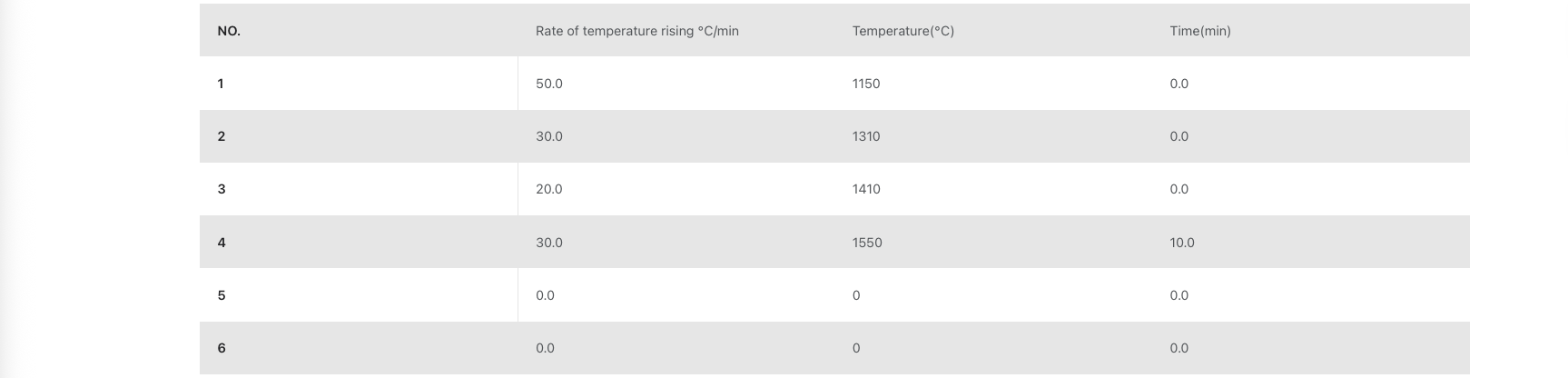

*The chart data is FPM single crown sintering data

2.Attractive appearance

Customized appearance specifically for clinical use

3. Safety

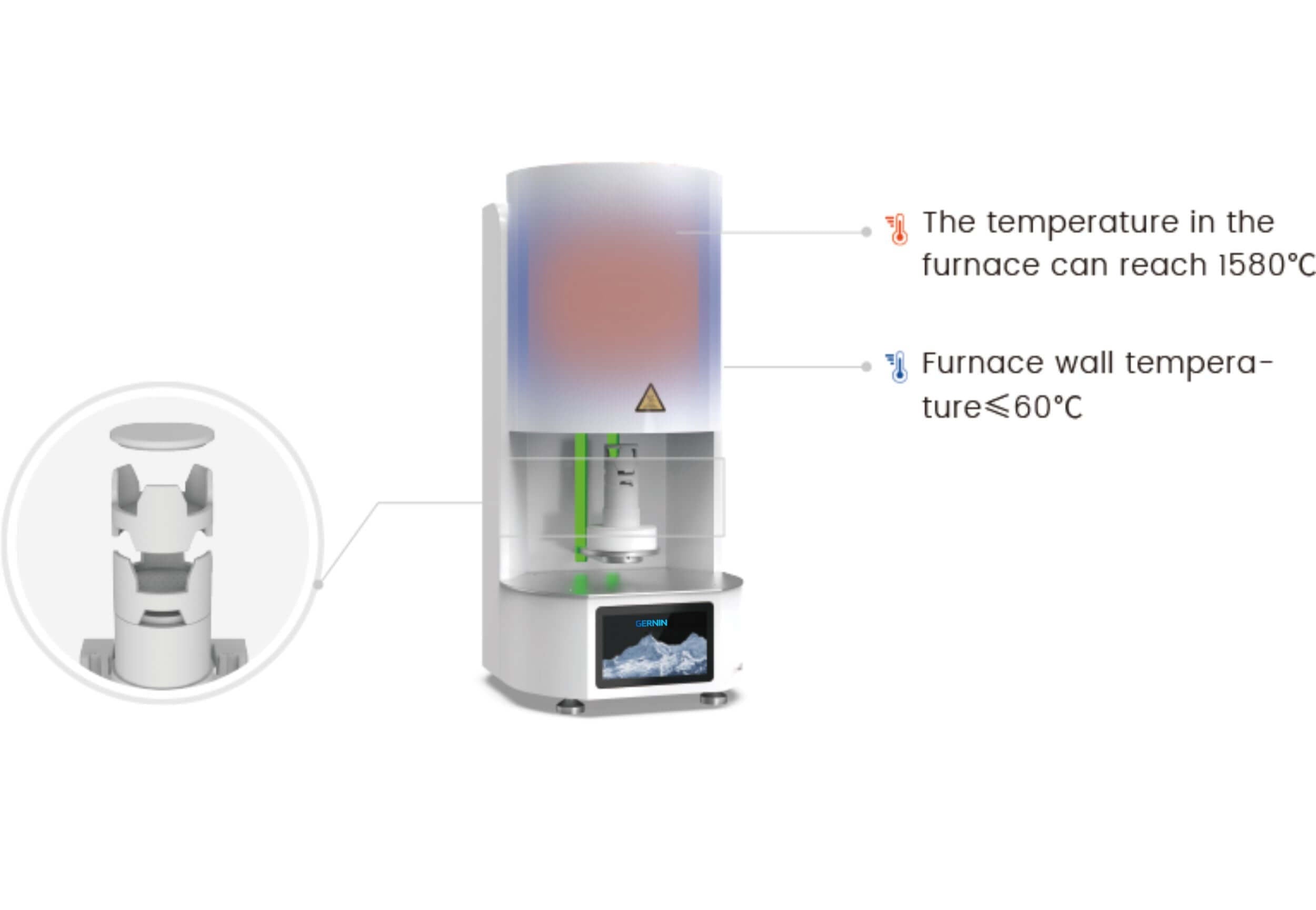

The heat insulation effect of the furnace is good, and the maximum temperature of the shell is not more than 60℃

EFFICIENT AND INTELLIGENT MORE THAN THAT

Efficient. Intelligent. Beyond Expectations.
Pursuing the ultimate sintering performance with continuous innovation in intelligent applications.

  1. Fast Sintering
    Single crowns can be sintered in as little as 30 minutes.
  2. High Capacity
    Supports up to 14 single crowns at once (double crucible, 7 teeth per crucible).
  3. Customizable Programs
    Offers 4 custom sintering curves and 4 preset curves, adjustable to meet diverse clinical and laboratory needs.
  4. Safety First
    Excellent heat insulation ensures the outer shell temperature does not exceed 60℃, even at high firing conditions.
  5. Wide Material Compatibility
    Optimized for GERNIN 3D Pro zirconia and other fast-sintering materials.
  6. High-performance Heating
    Equipped with silicon carbide rods for rapid heating, capable of maintaining 1580℃ for 60 minutes.
  7. Chairside Ready
    Seamlessly integrates with chairside CAD/CAM solutions, enabling efficient same-day digital restorations.
