Dental Lab Scanner
Introduction

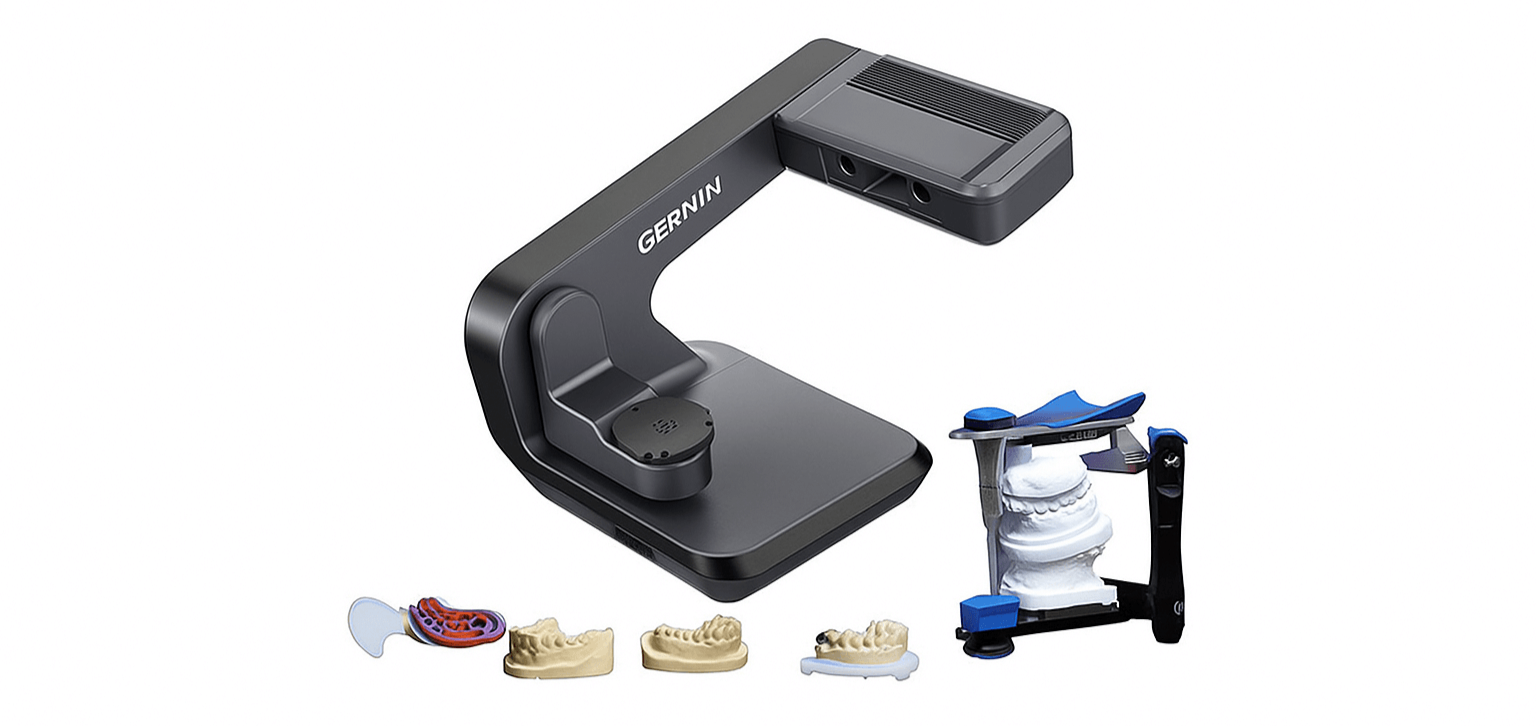

The GERNIN dental 3D scanner is a fully upgraded model that delivers faster scanning speeds and enhanced color texture capture. Featuring comprehensive functions, user-friendly operation, and leading efficiency, it supports a wide range of dental applications—including fixed and removable restorations, implants, and orthodontics.
With both software and hardware optimizations, the scanner offers clearer texture scanning, more complete non-separated model data, easier implant scanning, and highly efficient multi-die scanning—empowering dental technicians to manage large-scale production with ease.
Can be used for
Abutment teeth, gypsum models, impressions, triple-tray-impressions, articulator and more.
Digital Scanner Highlights
Parameter
Ultra-high Accuracy
With a scan accuracy of < 8 μm, the GERNIN Pro 3 ensures reliable results that meet the diverse requirements of dental applications.
Unparalleled Detail Capture
Equipped with dual 5.0 MP high-resolution cameras, it meticulously records every fine detail of dental components.
High-speed Scanning
- Bite scan: 7 s
- Upper/Lower jaw: 14 s
- 1–4 dies: 18 s
- 5–8 dies: 30 s
- Impression scan: 66 s
Flexible Workflow
Customize your workflow to boost efficiency. All-in-one and triple-tray options allow for complete scan data with fewer steps.
Simultaneous Data Processing
Scanning and data processing can run in parallel, significantly improving overall efficiency.
Versatile Scan Modes
The new GERNIN Pro 3 software supports multiple advanced modes, including Multi-Path Scan, High-Quality Scan, AI Scan, Texture Scan, HDR Mode Scan, and Reduce High Brightness Scan, ensuring adaptability to different clinical and laboratory needs.

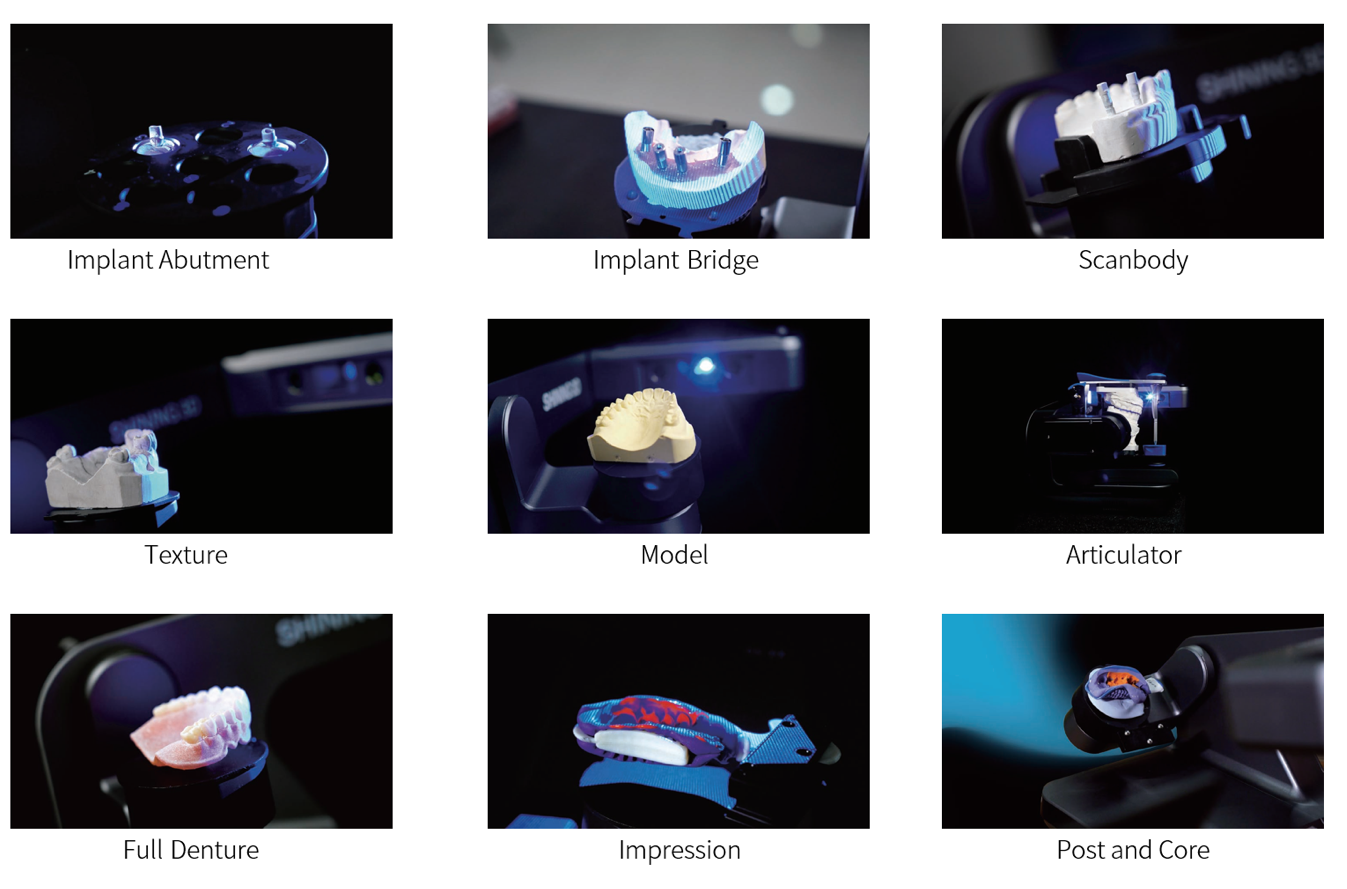

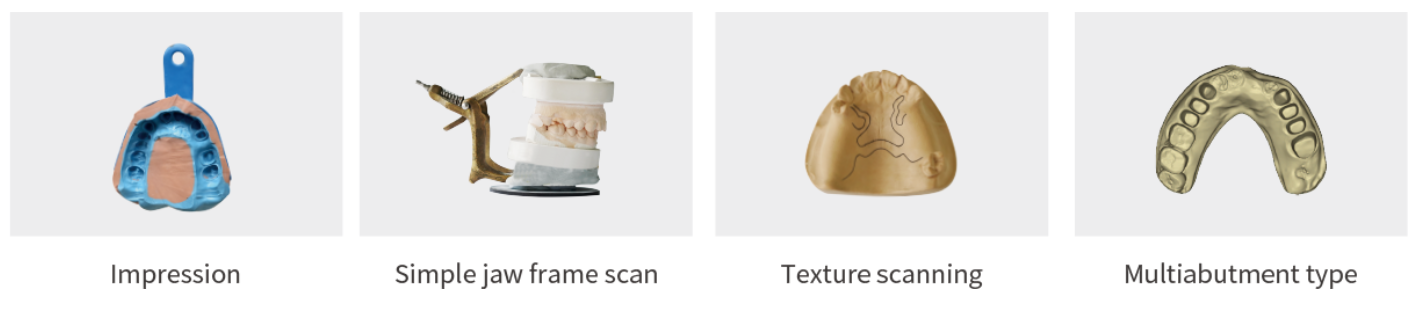

Application scenario
supports major dental scanning applications, including wax, abutment replacement, plaster models, single/double-sided impressions, jaw frames, texture scanning, and more.
